Powerful compact 6x9cm enlarger in metal construction.
The rock-solid all-metal device is available with a color mixing head, gradation conversion head, halogen cold light head, split-grade head or condenser.
The enlarger is available in the following basic configurations:
(additional extras can be added upon request)
- Enlarger with condenser lenses and filter drawer for insert filters for contrast control (100 or 250VA power)
- Enlarger with halogen mixed light and multigrade filter head (100 or 250VA power)
- Enlarger with LED cold light source, including Heiland Splitgrade Controller.

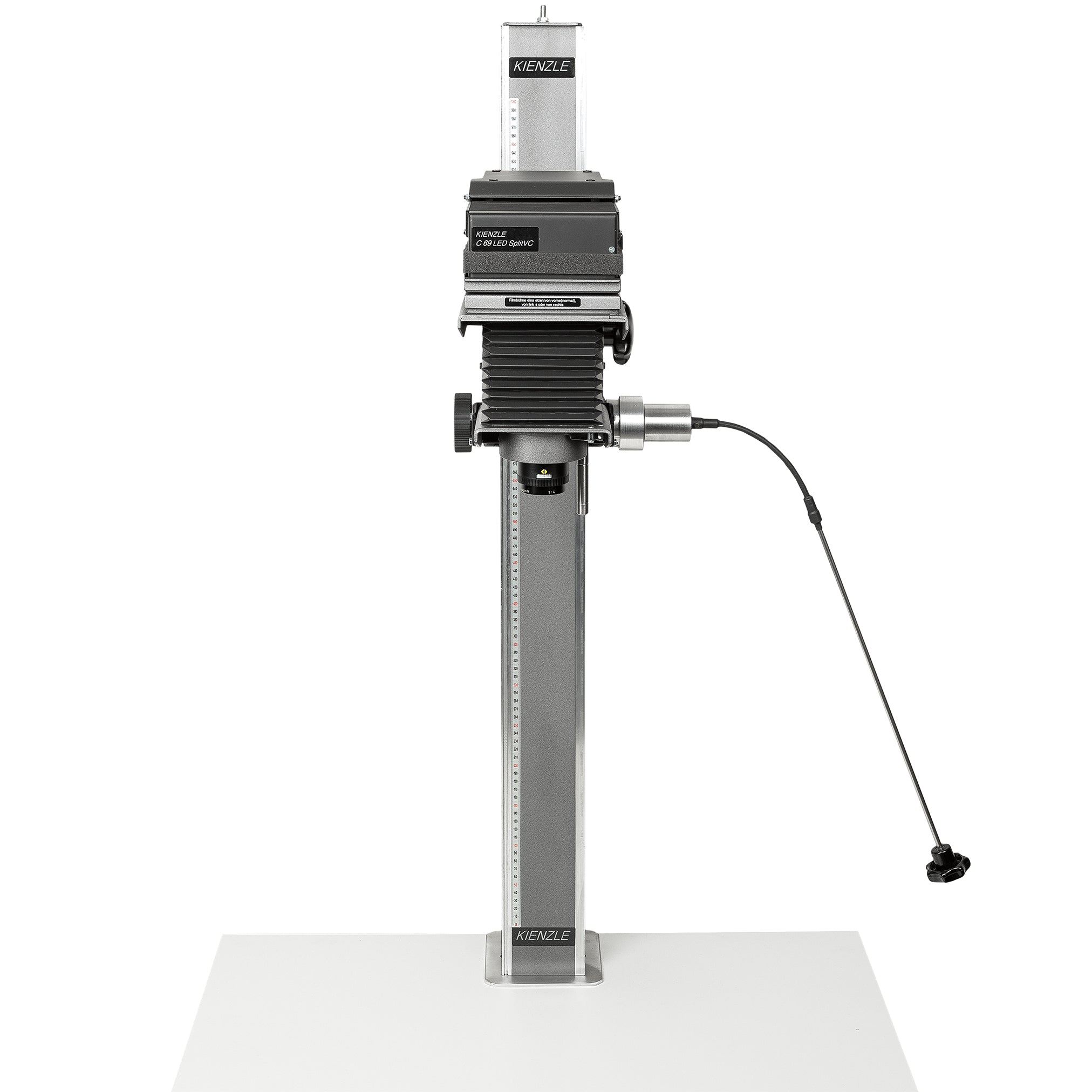

(The picture shows a KIENZLE C69 with LED cold light source as a model example.)
Characteristics
Format: 24x36 to 6x9cm
Magnification ratios: 1:1 to 7.3:1 (6x9,105), 2:1 to 17.5:1 (KB,50)
Column length: 1000 mm (standard); or 1150 (long column)
Projection (opt. axis): 320 mm
Baseboard: 550x725x40 mm (standard), other sizes on request
Weight: approx. 28 kg
max. height: approx. 1280 (1440) mm
Scope of delivery
All enlargers always include a negative stage with two glasses.
Condenser enlarger variant: Incl. lamp and filter drawer
Variant halogen mixed light and multigrade filter head: Incl. transformer and halogen lamp
LED enlarger version: Incl. LED light source, control unit, power supply and Heiland LED Spitgrade Controller as timer
Please note:
Without connection tubes (lens boards) for lenses.
Since these are focal length dependent, they must be ordered individually depending on the lens used)
Additional accessories such as lenses, circuit boards and negative masks can be found in our shop.
We will be happy to advise you on any questions you may have.
Kienzle enlargers are built by the manufacturer according to your wishes after your order and shipped from the factory.
Freight forwarding
Due to its size and weight, this item cannot be shipped as a regular parcel; it must be shipped via freight forwarding. Shipping costs will be calculated during checkout after you enter your delivery address.
Manufacturer's note
Kienzle Phototechnik always strives to further develop its products together with its customers in the spirit of technical progress.
We reserve the right to make technical changes and adjustments to the designs, even if they deviate from the product images shown here, although the basic function is always retained.
--> If in doubt, please contact us in advance using our contact form.
