35mm to 6x6cm – Enlarger with manual focusing via test reflex device.
A very good enlarger for beginners or as a robust school device.
The test reflex device swivels a focusing negative into the light path via a deflecting mirror. This is then projected instead of the inserted negative and simplifies focusing due to its graphic structure, even without a grain focuser.
The enlarger is available in the following versions:
- Enlarger with condenser lenses and filter drawer for insert filters for contrast control (75 VA power)
- Enlarger with halogen diffuse light and multigrade filter head (100VA power)

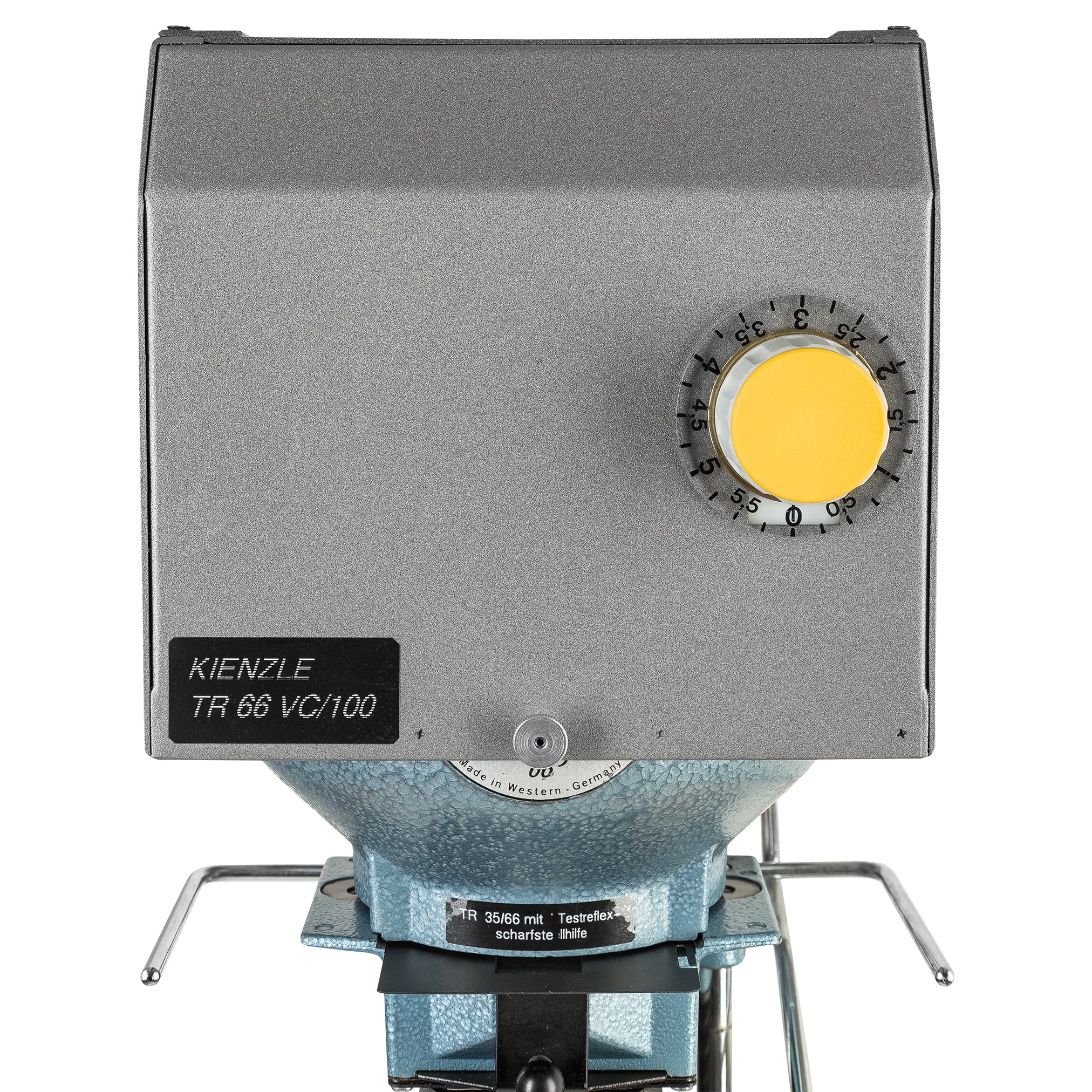

The pictures show the version with multigrade head.
Scope of delivery
All enlargers always include a negative stage with two glasses, lens board with M39 connection.
Without enlarging lens.
Condenser enlarger version: Incl. lamp and filter drawer
Halogen diffuse light + multigrade filter head version: Incl. transformer and halogen lamp
Technical data
- Negative size: 6x6cm or smaller
- Enlargement range: approx. 1.2x to 7.5x (f=75) approx. 1x to 12x (f=50)
- Large enlargements: by swiveling the device head by 180° (floor projection)
- Focusing: Test reflex focusing aid
- Baseboard: approx. 45x63cm
- Column length: approx. 55cm
- Light source condenser enlarger: Opal 75W light source: // VC: Halogen 12V/100VA
- Weight: VC: approx. 11.5kg incl. transformer, condenser approx. 4.7kg
Supplementary accessories, such as lenses, can be ordered through us.
We will be happy to advise you on any questions you may have.
Kienzle enlargers are built by the manufacturer after your order and shipped to you ex works.
Freight forwarding
Due to its size and weight, this item cannot be shipped as a regular parcel, but only by freight forwarder/large parcel. Shipping costs will be calculated at checkout after entering your delivery address.
Manufacturer's note
Kienzle Phototechnik is always striving to further develop its products together with its customers in the spirit of technical progress.
Technical changes and adaptations to the designs, even deviating from the product images shown here, are therefore reserved, whereby the basic function is always retained.
--> If in doubt, please contact us beforehand via our contact form.
